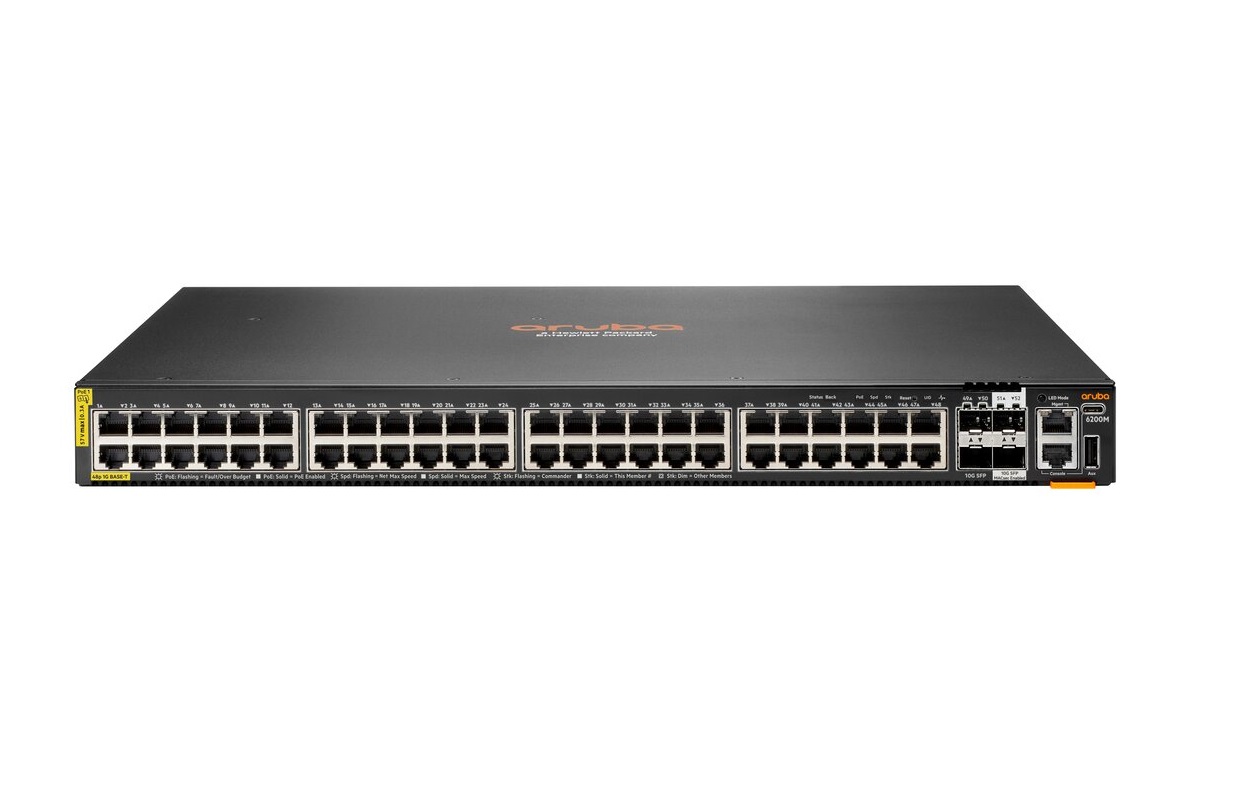

HPE R8Q70-61001 Aruba 6200m 48g Class4 Poe 4sfp+ Switch – Switch – Max. Stacking Distance 10 Kms – 48 Ports – Managed – Rack-mountable :
Key Features :
Device Type :switch – 48 Ports – L3 – Managed – Stackable
Enclosure Type : Front And Side To Back Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 48 X 10/100/1000 (poe+) + 4 X 1 Gigabit / 10 Gigabit Sfp+ (uplink / Stacking)
Power Over Ethernet (poe) : Poe+
Poe Budget : 1440 W
Performance : Switching Capacity: 176 Gbps ¦ Throughput: 130.9 Mpps ¦ Latency (1 Gbps): 2.28 ¥s ¦ Latency (10 Gbps): 1.46 ¥s ¦ Packet Buffer Size: 8 Mb ¦ Stacking Bandwidth: 40 Gbps
Capacity : Switched Virtual Interfaces (svis): 128 ¦ Ipv4 Host Table Capacity: 8000 ¦ Ipv6 Host Table Capacity: 8000 ¦ Ipv4 Routes (unicast): 2000 ¦ Ipv6 Routes (unicast): 2000 ¦ Igmp Groups: 1000 ¦ Mld Groups: 1000 ¦ Ipv4 Acl Entries (ingress): 1000 ¦ Ipv6 Acl Entries (ingress): 1000 ¦ Mac Acl Entries (ingress): 1000 ¦ Ipv4 Acl Entries (egress): 512 ¦ Ipv6 Acl Entries (egress): 256 ¦ Mac Acl Entries (egress): 512
Mac Address Table Size : 16000 Entries
Jumbo Frame Support : 9220 Bytes
Max Units In A Stack : 8
Routing Protocol : Ospf, Rip-2, Ospfv2, Ospfv3, Ecmp
Remote Management Protocol : Snmp, Snmp 3, Snmp 2c, Cli
Encryption Algorithm : Md5, Ssl, Fips 140-2
Authentication Method : Radius, Tacacs+
Features : Layer 2 Switching, Arp Support, Diffserv Support, Virtual Route Redundancy Protocol (vrrp) Support, Quality Of Service (qos), Trusted Platform Module (tpm), Equal-cost Multipath (ecmp), Uni-directional Link Detection (udld), Deficit Weighted Round Robin (dwrr), Management Information Base (mib), Class Of Service (cos), Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Source-specific Multicast (ssm), Network Timing Protocol (ntp), Security Slot (kensington Security Lock Compatible), Rapid Pvst+ (rpvst+), Dns Support, Igmp Support, Unidirectional Link Detection (udld), Automatic Media-dependent Interface Crossover (mdix), Web Gui Management Portal, Unsupported Transceiver Mode (utm), Egress Queue Shaping (eqs)
Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3at
Processor : 1 X Arm: 1.8 Ghz
Ram : 8 Gb Ddr4 Sdram
Flash Memory : 16 Gb
Expansion / Connectivity :
Interfaces :
48 X 10/100/1000 Base-t (poe+) Rj-45 Poe Class 4
4 X 1/10gbit Lan Sfp+ 2x Lrm, 2x Lrm/macsec 256
1 X Console Rj-45
1 X Management Rj-45
1 X Console (usb) Type C
1 X Usb Type A Host
Power :
Power Device : Internal Power Supply (not Installed)
Max Supported Qty : 2
Voltage Required : Ac 100-120/200-240 V (50/60 Hz)
Power Consumption Operational : 74 Watt
Power Consumption Stand By : 59 Watt
Condition : New Retail Factory Sealed
Availability : In Stock.
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
