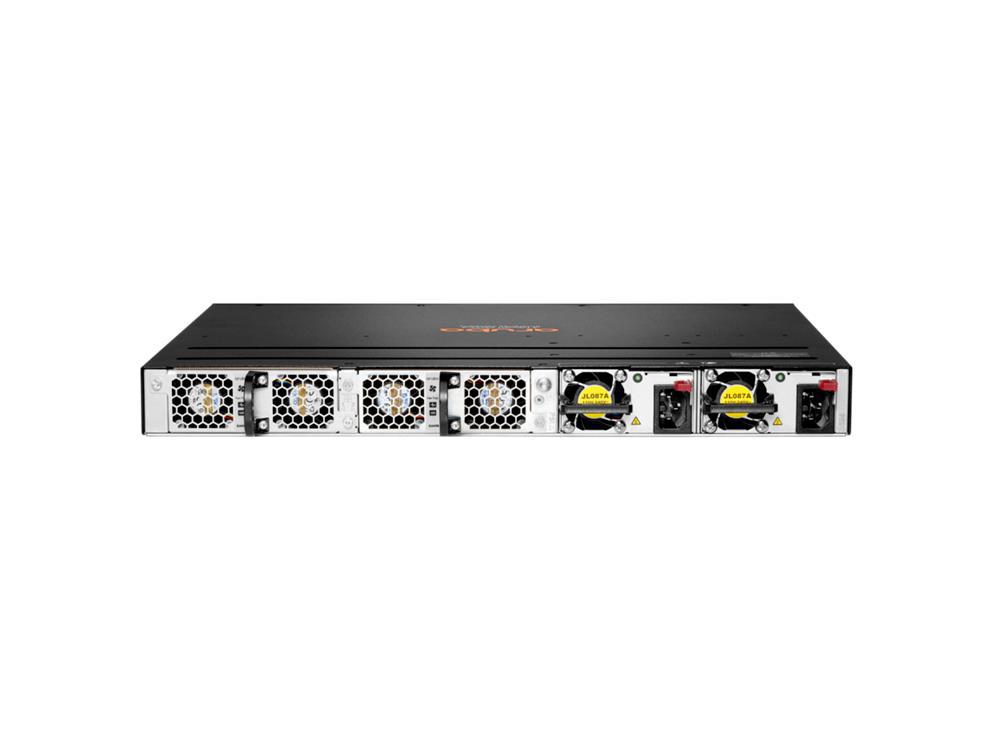

HPE R8Q71-61001 Aruba 6200m 36g 12sr5 Class6 Poe 4sfp+ Switch – 48 Ports – Manageable – 10 Gigabit Ethernet, Gigabit Ethernet, 5 Gigabit Ethernet – 10/100/1000base-t, 10gbase-x, 5gbase-t – 3 Layer Supported – Modular – 60 W Power Consumption – 1440 W Poe Budget – Optical Fiber, Twisted Pair – Rack-mountable, Surface Mount, Cabinet Mount.
General Information :
Device Type: Switch – 48 Ports – L3 – Managed – Stackable
Enclosure Type: Front And Side To Back Rack-mountable 1u
Subtype: Gigabit Ethernet
Ports: 36 X 10/100/1000 (4ppoe) + 12 X 1/2.5/5gbase-t (4ppoe) + 4 X 1 Gigabit / 10 Gigabit Sfp+ (uplink / Stacking)
Power Over Ethernet (poe) : 4ppoe
Poe Budget: 1440 W
Performance:
Switching Capacity: 272 Gbps
Throughput: 130.9 Mpps
Latency (1 Gbps): 2.28
Latency (10 Gbps): 1.46
Packet Buffer Size: 8 Mb
Stacking Bandwidth: 40 Gbps
Capacity:
Switched Virtual Interfaces (svis): 128
Ipv4 Host Table Capacity: 8000
Ipv6 Host Table Capacity: 8000
Ipv4 Routes (unicast): 2000
Ipv6 Routes (unicast): 2000
Igmp Groups: 1000
Mld Groups: 1000
Ipv4 Acl Entries (ingress): 1000
Ipv6 Acl Entries (ingress): 1000
Mac Acl Entries (ingress): 1000
Ipv4 Acl Entries (egress): 512
Ipv6 Acl Entries (egress): 256
Mac Acl Entries (egress): 512
Mac Address Table Size: 16000 Entries
Jumbo Frame Support: 9220 Bytes
Max Units In A Stack: 8
Routing Protocol: Ospf, Rip-2, Ospfv2, Ospfv3, Ecmp
Remote Management Protocol: Snmp, Snmp 3, Snmp 2c, Cli
Encryption Algorithm: Md5, Ssl, Fips 140-2
Authentication Method: Radius, Tacacs+
Features : Layer 2 Switching, Arp Support, Diffserv Support, Virtual Route Redundancy Protocol (vrrp) Support, Quality Of Service (qos), Trusted Platform Module (tpm), Equal-cost Multipath (ecmp), Uni-directional Link Detection (udld), Deficit Weighted Round Robin (dwrr), Management Information Base (mib), Class Of Service (cos), Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Source-specific Multicast (ssm), Network Timing Protocol (ntp), Security Slot (kensington Security Lock Compatible), Rapid Pvst+ (rpvst+), Dns Support, Igmp Support, Unidirectional Link Detection (udld), Automatic Media-dependent Interface Crossover (mdix), Web Gui Management Portal, Unsupported Transceiver Mode (utm), Egress Queue Shaping (eqs)
Compliant Standards: Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3bt
Processor: 1 X Arm: 1.8 Ghz
Ram: 8 Gb Ddr4 Sdram
Flash Memory: 16 Gb
Expansion / Connectivity :
Interfaces:
36 X 10/100/1000 Base-t (4ppoe) Rj-45 Poe Class 6
12 X 1/2.5/5gbase-t (4ppoe) Rj-45 Poe Class 6
4 X 1/10gbit Lan Sfp+ 2x Lrm 2x Lrm/macsec 256
1 X Console Rj-45
1 X Management Rj-45
1 X Console (usb) Type C
1 X Usb Type A Host
Power :
Power Device: Internal Power Supply (not Installed)
Max Supported Qty: 2
Voltage Required: Ac 100-120/200-240 V (50/60 Hz)
Power Consumption Operational: 74 Watt
Power Consumption Stand By: 59 Watt
Condition: New. New Open Box.
Availability: In Stock.
Warranty: 90 Days.
