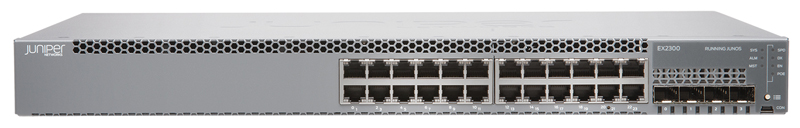

Juniper Networks EX2300-24P Ex Series – Switch – 24 Ports – Managed – Rack-mountable.
General Information :
Device Type : Switch – 24 Ports – L3 – Managed
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 (poe+) + 4 X Gigabit Sfp / 10 Gigabit Sfp+
Power Over Ethernet (poe) : Poe+
Poe Budget : 370 W
Performance : Switching Capacity: 128 Gbps , Forwarding Performance: 95 Mpps
Mac Address Table Size : 16000 Entries
Jumbo Frame Support : 9216 Bytes
Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2)
Features : Igmp Snooping, Traffic Shaping, Broadcast Storm Control, Multicast Storm Control, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Dhcp Server, Redundant Trunk Group (rtg), Lldp Support, Dhcp Relay, Link Aggregation Control Protocol (lacp), Port Based Access Control, Dhcp Client, Vlan Spanning Tree Protocol (vstp), Ntp Time Synchronization, Link Aggregation Trunking, Tagged Vlan, Type Of Service (tos), Diffserv Code Point (dscp) Support, Igmp Filtering, Protocol-based Vlans Support, Uplink Failure Detection (ufd), Traffic Remarking, Role-based Access Control (rbac), Network Timing Protocol (ntp), Policy Based Routing
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.3ah, Ieee 802.1ab (lldp)
Expansion / Connectivity :
Interfaces :
24 X 1000base-t Rj-45 Poe+
4 X 10gbit Lan Sfp+
1 X Console Rj-45 Management
1 X 1000base-t Rj-45 Management
1 X Console (mini-usb) Management
1 X Usb
Power :
Power Device : Internal Power Supply
Power Provided : 450 Watt
Voltage Required : Ac 120/230 V
Condition : New Factory Sealed.
Availability : In Stock.
Our Warranty : 90 Days.
