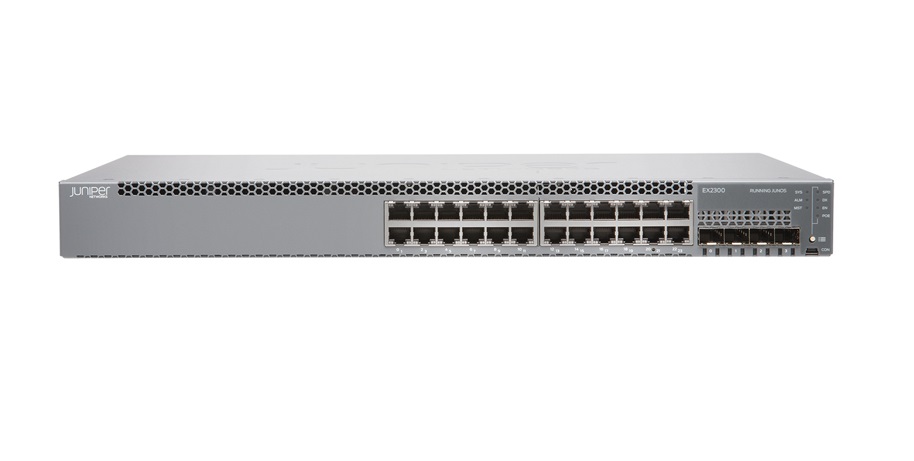

Juniper NETWORKS EX2300-24T Switch – 24 Ports – Managed – Rack-Mountable

Juniper EX2300-24T Ex Series – Switch – 24 Ports – Managed – Rack-mountable.

General Information:

device Type: Switch – 24 Ports – L3 – Managed

enclosure Type: Rack-mountable 1u

subtype: Gigabit Ethernet

ports: 24 X 10/100/1000 + 4 X Gigabit Sfp / 10 Gigabit Sfp+

performance : Switching Capacity: 128 Gbps ¦ Throughput: 95 Mpps

capacity: Acl Entries: 1500 ¦ Multiple Spanning Tree Protocol Instances: 64 ¦ Vlan Spanning Tree Protocol Instances: 253 ¦ Arp Entries: 1024 ¦ Ipv4 Routes (unicast): 512 ¦ Ipv4 Hosts: 4096 ¦ Ipv4 Routes (multicast): 2048 ¦ Maximum Of Neighboring Networks: 750 ¦ Ipv6 Routes (unicast): 128 ¦ Ipv6 Hosts: 2048 ¦ Ipv6 Routes (multicast): 1024 ¦ Qos Hardware Queues Per Port: 8 ¦ Virtual Interfaces (vlans): 4093 ¦ Active Vlans: 2048 ¦ Lag Groups: 128 ¦ Maximum Member Ports Per Lag: 8

mac Address Table Size : 16000 Entries

jumbo Frame Support : 9216 Bytes

routing Protocol : Rip-1, Rip-2, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Cidr

remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Https, Tftp, Ssh, Cli

encryption Algorithm : Md5, Tls, Peap, Ttls

authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2), Extensible Authentication Protocol (eap)

compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.3ah, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.1br

processor: 1 X Arm: 1.25 Ghz

ram: 2 Gb

flash Memory: 2 Gb

expansion / Connectivity :

interfaces : 24 X 1000base-t – Rj-45 ¦ 4 X 10gbit Lan – Sfp+ – Uplink ¦ 1 X Serial – Management ¦ 1 X 100base-tx – Rj-45 – Management

power:

power Device: Internal Power Supply

power Consumption Operational: 55 Watt

Condition : New Factory Sealed.

Availability : In Stock.

Our Warranty : 90 Days.
