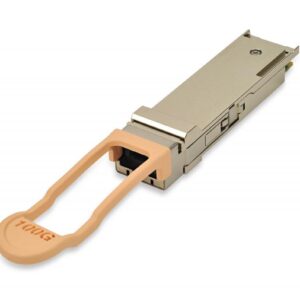

Juniper Networks QSFP-100GBASE-SR4 100GBASE-SR4 QSFP28 pluggable module support only Ethernet rate

Juniper Networks QSFP-100GBASE-SR4 100gbase-sr4 Qsfp28 Pluggable Module Support Only Ethernet Rate

Specifications

Speed 4 X 25 Gigabit Ethernet, 100 Gigabit Ethernet

Breakout Capable Yes

Breakout Cables Mtp-4lc-m1m, Mtp-4lc-m3m, Mtp-4lc-m5m, Mtp-4lc-m10m Can Be Used As Break-out Cables

Transceiver Type Qsfp28

Product Type Optical Transceiver

Connector Mpo-12

Monitoring Available Yes

Digital Optical Monitoring Yes

Standards 100gbase-sr4

Diagnostic Support Yes

Signaling Rate Each Lane 25.78125 Gbd +/- 100 Ppm

Transmitter Wavelengths (range) 840 Nm Through 860 Nm

Receive Lane Wavelengths (range) 840 Nm Through 860 Nm

Transmitter Output Power Each Lane (minimum) –8.4 Dbm

Transmitter Output Power Each Lane (maximum) 2.4 Dbm

Receiver Input Power, Each Lane (minimum) –10.3 Dbm

Receiver Input Power, Each Lane (maximum) 2.4 Dbm

Cable Type Smf

Core Size/cladding 50/125 Micrometer

Fiber Grade Om3, Om4

Effective Modal Bandwidth 2000 Mhz X Km(om3), 4700 Mhz X Km(om4)

Distance 70 Km(om3), 100 M(om4)

Maximum Power Consumption (w) 3.5 W

Operating Temperature (range) 0° C To 70° C

Storage Temperature –40° C To 85° C

Condition: New.

Availability: In Stock.

Our Warranty: 90 Days.
