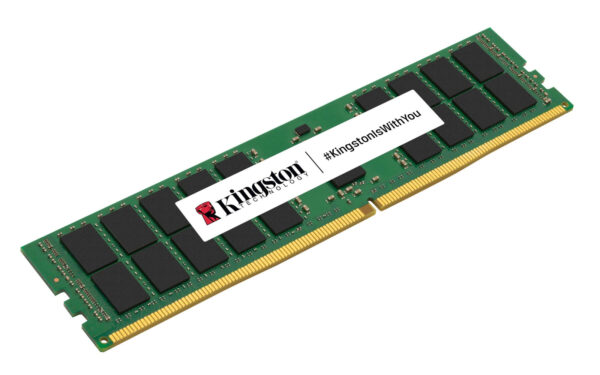

Kingston KSM56R46BS8PMI-16MDI 16GB DDR5 5600MT/s ECC Registered DIMM

Kingston”s KSM56R46BS8PMI-16MDI is a 2G x 80-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on ten 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:FEATURES Power Supply: VDD = 1.1V Typical VDDQ = 1.1V Typical VPP = 1.8V Typical VDDSPD = 1.8V to 2.0V On-Die ECC x80 ECC (x40, 2 independent I/O sub channels) 32 internal banks Hard/Soft Post Package Repair Sideband access with I3C/I2C PCB: Height 1.23″ (31.25mm) RoHS Compliant and Halogen-Free
