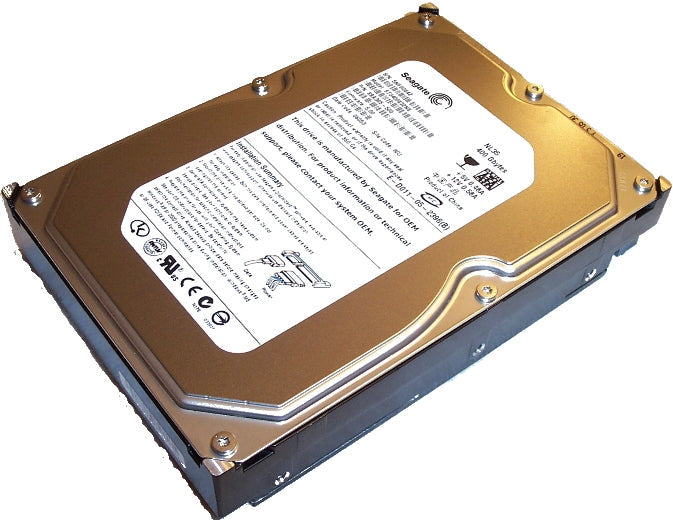

Seagate ST3400832NS NL35 400GB 7200RPM SATA 3.5″ Hard Drive

The NL35 Series 400GB nearline-ready SATA drive goes beyond desktop-class disc drives to address the unique needs of nearline applications with higher reliability and smoother integration into multi-disc nearline applications.

ST3400832NS Specifications

Technical Information

•
  Storage Capacity:

  400 GB

Drive Performance

•
  Maximum External Data Transfer Rate:

  150 MBps (1.2 Gbps)
•
  Maximum Internal Data Transfer Rate:

  95 MBps (760 Mbps)
•
  Rotational Speed:

  7200 rpm
•
  Buffer:

  8 MB
•
  Average Seek Time:

  9 ms
•
  Average Latency:

  4.16 ms

Interfaces/Ports

•
  Drive Interface:

  SATA/150
•
  SATA Pin:

  7-pin

Power Description

•
  Input Voltage:

  12 V DC

Physical Characteristics

•
  Drive Type:

  Internal
•
  Drive Width:

  3.5″
•
  Height:

  1.0″
•
  Width:

  0.5″
•
  Depth:

  5.8″
•
  Weight (Approximate):

  1.60 lb

Miscellaneous

•
  Additional Information:

• Formatted Internal Transfer Rate: 95 MBytes/sec Maximum
• Areal Density: 91,560 Mbits/square inch
• Track Density (TPI): 120,000 tracks/inch
• Recording Density (BPI): 763,000 bits/inch Maximum
• Spinup Time: 10 seconds
• Service Life: 3 year(s)
• Nearline-Class Reliability
• Workload Management
• Error Recovery Control
•
  Certifications & Standards:

• S.M.A.R.T

Warranty

•
  Limited Warranty:

  5 Year
