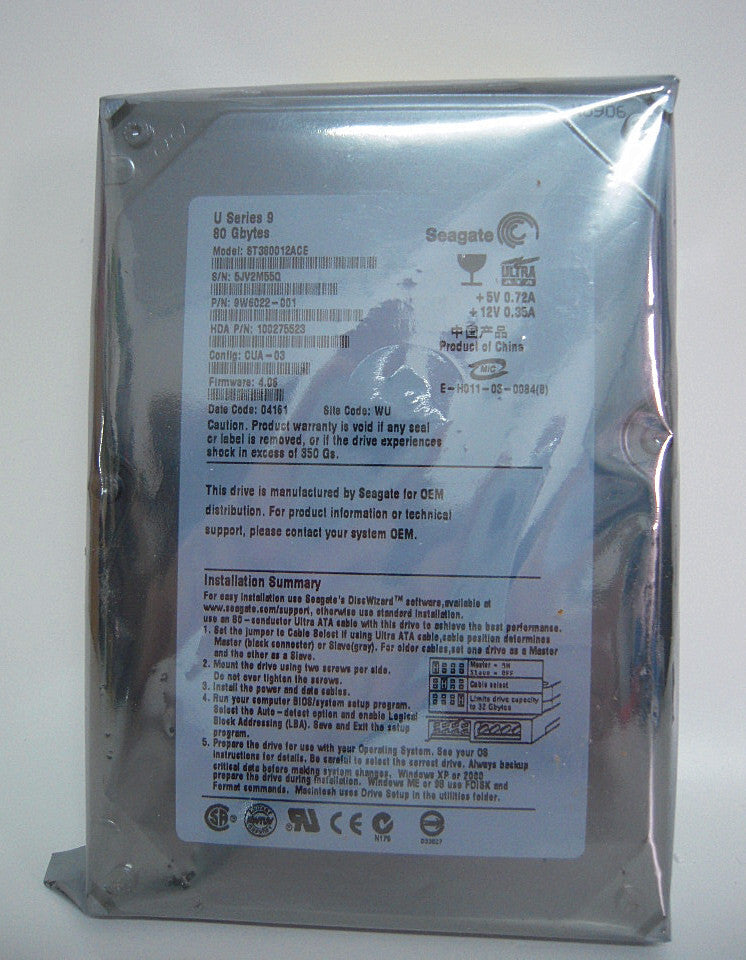

Seagate U Series-9 80GB 7200Rpm 2MB cache IDE Ultra ATA100 / ATA-6 3.5-Inch Hard Drive (ST380012ACE)

What’s your next big idea? Seagate drives have been at the heart of the consumer electronics revolution since its beginning in 1997. Today, U Series 9 CE drives deliver the characteristics CE manufacturers seek most – quiet acoustics, high reliability and top streaming performance. These Seagate CE drives are also compatible with ATA-standard firmware, providing easy controls for video stream time-outs.

st380012ace Specifications

Technical Information

•
  Storage Capacity:

  80 GB

Drive Performance

•
  Maximum External Data Transfer Rate:

  100 MBps (800 Mbps)
•
  Maximum Internal Data Transfer Rate:

  85.4 MBps (683.2 Mbps)
•
  Buffer:

  1 MB
•
  Average Latency:

  4.16 ms

Interfaces/Ports

•
  Drive Interface:

  IDE Ultra ATA/100 (ATA-6)

Power Description

•
  Input Voltage:

  12 V DC
•
  Input Voltage:

  5 V DC

Physical Characteristics

•
  Drive Type:

  Internal
•
  Drive Width:

  3.5″
•
  Drive Height:

  1/3H
•
  Height:

  1.0″
•
  Width:

  4.0″
•
  Depth:

  5.8″
•
  Weight (Approximate):

  1.40 lb

Miscellaneous

•
  Additional Information:

• Recording Method: EPRML 16/17 ZBR
• TPI (Tracks per Inch): 94600
• BPI (Kbits per Inch): Up to 595000
• Areal density: 56.3 Mbits/sq. inch Maximum
• Power-on to ready: 10 sec Typical
• Standby to ready: 10 sec Typical

•
  Best-Fit Applications:


• Personal Video Recorders (PVR)
• Video game consoles
• Audio jukeboxes
• Home media centers
• Home and industrial security systems
•
  Certifications & Standards:

• S.M.A.R.T
• UL 1950
• CSA C22.2
• IEC950
• EN 60950
• EMI/EMS
• FCC

Warranty

•
  Limited Warranty:

  3 Year
