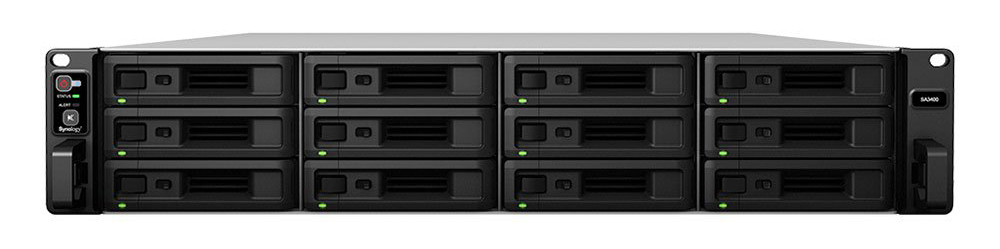

Synology SA3400 12 Bay Nas Storage System, 1 X Intel Xeon 8-core D-1541 2.1 Ghz, 16gb (16 Gb X 1) Ddr4 Ecc Rdimm, 2 X Pci Express 3.0 X8, 4 X Ethernet 1000base-t – Rj-45, 2 X 500w Power Supply
General Information :
Manufacturer :Synology
Manufacturer Part Number : SA3400
Manufacturer Website Address : HTTPS://WWW.SYNOLOGY.COM/
Product Name :Synology SA3400 12 Bay Nas Storage System
Processor & Chipset :
Processors Installed : 1 X Intel Xeon D-1541 2.1 Ghz
Number Of Cores : Octa-core
Max Supported Qty : 1
Max Turbo Speed : 2.7 Ghz
Memory :
System Memory : 16 Gb Ddr4 Ecc Rdimm
Memory Module Pre-installed : 16gb X 1
Total Memory Slots : 4
Memory Expandable Up To : 128 Gb (32 Gb X 4)
Storage & Storage Controller :
Drive Bays : 12 Bays
Maximum Drive Bays With Expansion Unit : 96 (rx1222sas/rx1217sas X 7) / 180 (rx2417sas X 7)
Compatible Drive Type :
3.5 Sas Hdd
2.5 Sas Hdd
2.5 Sas Ssd
3.5 Sata Hdd
2.5 Sata Hdd
2.5 Sata Ssd
Hot Swappable : Yes
Storage Controller Type : Raid
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Jbod, Raid F1
Network & Communication :
Data Link Protocol : 10mb Lan, 100mb Lan, Gige, 10 Gige
Network / Transport Protocol : Pptp, L2tp, Iscsi, Smtp, Ftp, Smb, Https
Remote Management Protocol : Snmp, Telnet, Https, Ssh, Smtp, Ldap
Network Services Compatibility : Microsoft Active Directory (ad), Network
File System (nfs), Ftp, Server Message Block (smb), Apple File Protocol (afp), Https, Web-based Distributed Authoring And Versioning (webdav), Calendaring Extensions To Webdav (caldav)
Features : Firewall Protection, Vpn Support, Ldap Support, Wake On Lan (wol), Antivirus Analysis, High Availability, Anti-malware Protection, Access Control List (acl) Support, E-mail Server, Reset Button, Bandwidth Control, Surveillance Station, Vpn Server, Failover Protection, Openstack Compatible, B-tree File System (btrfs), File Station, Ext4 File System, Iscsi Lun Clone/snapshot, Windows Odx, Mailplus Server
Encryption Algorithm : Aes-ni
Security Dvr :
Ip Cameras Supported : 100
Compression Format : Mjpeg, H.264, H.265
Image Resolution : 1280×720, 1920×1080, 2048×1536, 2591×1944, 3840×2160
Expansions & Connectivity :
Expansion Bays Total (free) :
12 (total) / 12 (free) X Hot-swap – 2.5 / 3.5
Expansion Slots Total (free) :
2 X Pci Express 3.0 X8
4 (total) / 3 (free) X Dimm 288-pin
Interfaces & Ports :
4 X Ethernet 1000base-t – Rj-45
2 X Usb 3.0 – Type A
1 X Serial – Db-9
2 X Ethernet 10gb – Rj-45
Power Device :
Power Device : Internal Power Supply
Installed Qty : 2
Max Supported Qty : 2
Power Redundancy : Yes
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Consumption Operational : 137.17 Watt
Power Provided : 500 Watt
Dimensions & Weight :
Width : 19 In
Depth : 28.5 In
Height : 3.5 In
Weight : 31.97 Lbs
Condition : New Factory Sealed.
Availability : Call .
Our Warranty : 90 Days.
