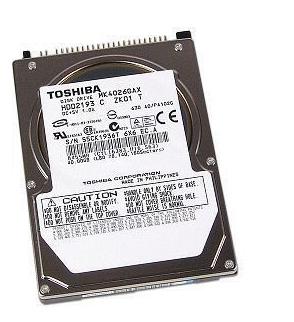

Toshiba 40.0GB 5400 RPM 9.5MM 16MB Ultra DMA-100/ATA-6 IDE/EIDE Hard Drive

Toshiba America Information Systems, Inc. (TAIS), Storage Device Division introduces the MK8026GAX 2.5-inch 80GB Hard Disk Drive. The MK8026GAX offers the industries highest areal density per platter, at 64.7 gigabits per square inch. The drive’s 5400 RPM motor speed, improves system-level performance by as much as 12 percent when compared to 4200 RPM.

MK4026GAX Specifications

Technical Information

•
  Storage Capacity:

  80.01 GB
•
  Platform Supported:

  PC

Drive Performance

•
  Maximum External Data Transfer Rate:

  100 MBps (800 Mbps)
•
  Rotational Speed:

  5400 rpm
•
  Buffer:

  16 MB
•
  Average Seek Time:

  2 ms
•
  Maximum Seek Time:

  22 ms
•
  Average Latency:

  5.55 ms

Interfaces/Ports

•
  Drive Interface:

  IDE Ultra ATA/100 (ATA-6)

Power Description

•
  Input Voltage:

  5 V DC

Physical Characteristics

•
  Drive Type:

  Internal
•
  Drive Width:

  2.5″
•
  Drive Height:

  1/8H
•
  Height:

  0.4″
•
  Width:

  2.8″
•
  Depth:

  3.9″
•
  Weight (Approximate):

  3.56 oz

Miscellaneous

•
  Additional Information:

• Logical Blocks (LBA): 156,301,488
• MTTF (Power on hours): 300,000
• Product Life: 5 years or 20,000 power ON hours
• Fluid Dynamic Bearing (FDB) motor drive

Warranty

•
  Limited Warranty:

  3 Year
