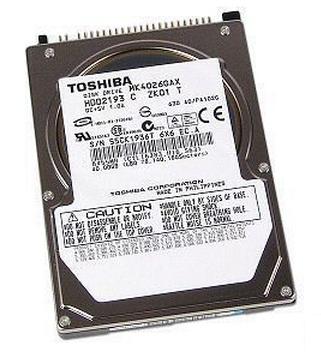

Toshiba HDD2193 40GB 5400RPM 16MB Ultra DMA-100/ATA-6 2.5′ Hard Drive

Toshiba America Information Systems, Inc. (TAIS), Storage Device Division introduces the MK4026GAX 2.5-inch 40GB Hard Disk Drive. The MK4026GAX offers the industries highest areal density per platter, at 57.9 gigabits per square inch. The drive’s 5400 RPM motor speed, improves system-level performance by as much as 12 percent when compared to 4200 RPM. This new drive offers enough capacity for portable video recording and editing, with lower power consumption compared to the traditional 3.5-inch HDDs. This functionality provides ideal storage for a range of commercial and consumer notebooks, as well as non-PC applications such as PDAs, printers, copiers, GPS systems and MP3 players.

HDD2193 Specifications

Technical Information


•
  Storage Capacity:

  40.01 GB
•
  Platform Supported:

  PC

Drive Performance


•
  Maximum External Data Transfer Rate:

  100 MBps (800 Mbps)
•
  Rotational Speed:

  5400 rpm
•
  Buffer:

  16 MB
•
  Average Latency:

  5.55 ms

Interfaces/Ports


•
  Drive Interface:

  IDE Ultra ATA/100 (ATA-6)

Power Description


•
  Input Voltage:

  5 V DC

Physical Characteristics


•
  Drive Type:

  Internal
•
  Drive Width:

  2.5″
•
  Height:

  0.4″
•
  Width:

  2.8″
•
  Depth:

  3.9″
•
  Weight (Approximate):

  3.42 oz

Miscellaneous


•
  Additional Information:

• Logical Blocks (LBA): 78,140,160
• MTTF (Power on hours): 300,000
• Product Life: 5 years or 20,000 power ON hours
• Fluid Dynamic Bearing (FDB) motor drive

Warranty


•
  Limited Warranty:

  3 Year
