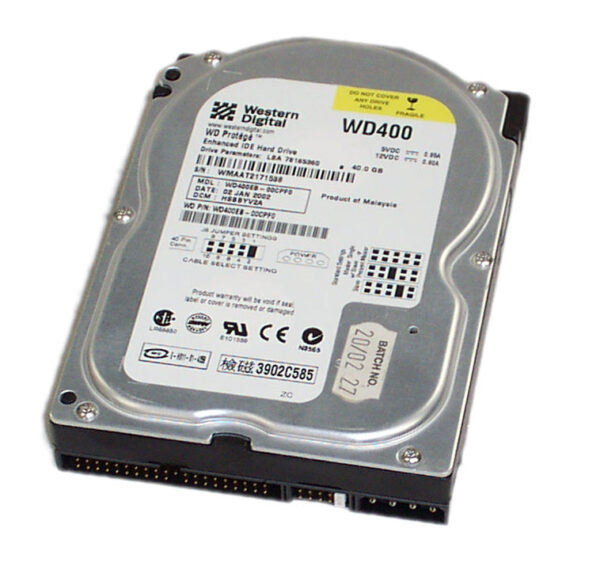

Western Digital WD400EB / WD400EB-11JEF0 40Gb 5400Rpm 2Mb Cache ATA-100 IDE/EIDE 3.5-Inch Internal Hard Drive

WD Pro© 5400 hard drives offer the quality, reliability and service you expect from WD hard drives

WD400EB Specifications

Technical Information

•
  Storage Capacity:

  40 GB

Drive Performance

•
  Maximum External Data Transfer Rate:

  100 MBps (800 Mbps)
•
  Maximum Internal Data Transfer Rate:

  74.2 MBps (593.5 Mbps)
•
  Rotational Speed:

  5400 rpm
•
  Buffer:

  2 MB
•
  Average Seek Time:

  20 ms
•
  Average Latency:

  5.35 ms

Interfaces/Ports

•
  Drive Interface:

  IDE Ultra ATA/100 (ATA-6)

Power Description

•
  Input Voltage:

  5 V DC
•
  Input Voltage:

  12 V DC

Physical Characteristics

•
  Drive Type:

  Internal
•
  Drive Width:

  3.5″
•
  Drive Height:

  1/3H
•
  Height:

  1.0″
•
  Width:

  4.0″
•
  Depth:

  5.8″
•
  Weight (Approximate):

  1.32 lb

Miscellaneous

•
  Additional Information:

• Data Lifeguard: WD’s exclusive hardware, software and services designed to protect your data.
