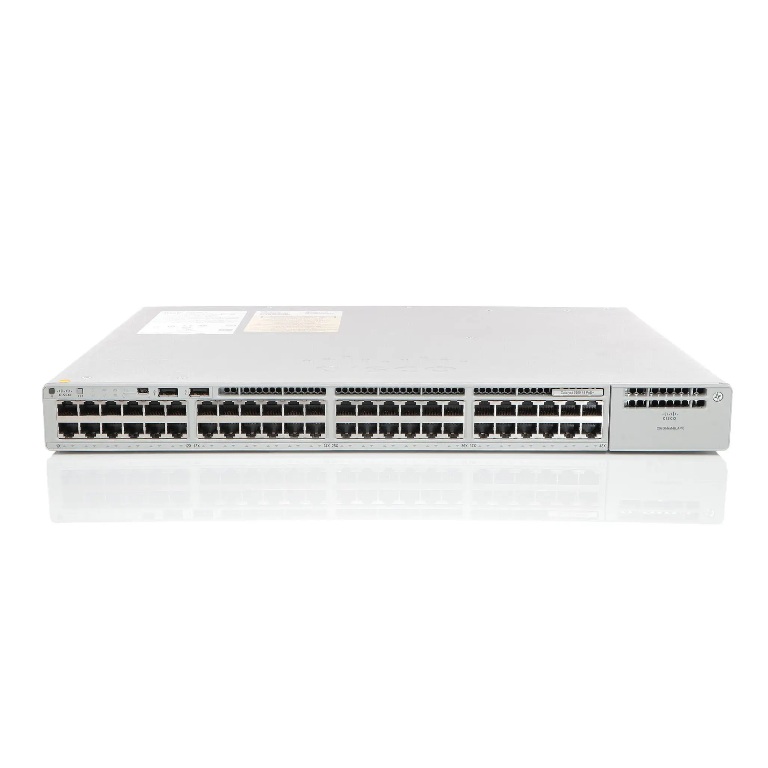

CISCO C9200-48PB-A Catalyst 9200 – Enhanced Vrf, Network Advantage – Switch – L3 – Smart – 48 X 10/100/1000 (poe+) – Rack-mountable – Poe+.
Key Features :
Device Type : Switch – 48 Ports – L3 – Smart – Stackable
Enclosure Type : Rack-mountable
Subtype : Gigabit Ethernet
Ports : 48 X 10/100/1000 (poe+)
Power Over Ethernet (poe) : Poe+
Performance : Stacking Bandwidth: 160 Gbps ¦ Switching Bandwidth: 176 Gbps ¦ Forwarding Rate: 261.9 Mpps
Capacity : Virtual Networks: 32 ¦ Ipv4 Routing Table Entries: 4000 ¦ Ipv6 Routing Table Entries: 2000 ¦ Acl Scale Entries: 1600 ¦ Packet Buffer Size: 6 Mb ¦ Vlan Ids: 4096 ¦ Switched Virtual Interfaces (svis): 1000 ¦ Flexible Netflow Entries: 16000
Mac Address Table Size : 32000 Entries
Jumbo Frame Support : 9198 Bytes
Routing Protocol : Ospf, Rip, Is-is, Rip-1, Rip-2, Eigrp, Hsrp, Vrrp, Pim-sm, Eigrp For Ipv6, Ospfv3, Pim-ssm, Msdp, Policy-based Routing (pbr), Ripng, Mstp
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Cli, Netconf, Restconf
Encryption Algorithm : 128-bit Aes
Features : Arp Support, Stp Support, Rapid Pvst+, Srr, Pxe Support, Rspan, Energy Efficient Ethernet, Mib, Vrf, Cos, Fnf, CISCO Stackwise-160 Technology, Dscp Support, Macsec Support, Built-in Asic, Copp, Vxlan, Lisp, Span, Sgt Caching, Eem, Pim, Fhs, Pvlan Support, Dna Support, Superior Qos, Cir
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.3at, Ieee 802.3bz
Ram : 4 Gb
Flash Memory : 4 Gb
Built-in Devices : Rfid Tag
Expansion / Connectivity :
Interfaces :
48 X 10/100/1000 Base-t Rj-45 Poe+ – 30 W
1 X Network Stack Device
1 X Management (lan) Rj-45
1 X Console Rj-45
Expansion Slots :
1 (total) / 1 (free) X Expansion Slot
Power :
Power Device: internal Power Supply – Hot-plug
Max Supported Qty: 2
Power Redundancy: optional
Voltage Required: ac 100-240 V (50 – 60 Hz)
Condition : Refurbished
Availability : In Stock.
Our Warranty : 90 Days.
