The CISCO Catalyst 3850 Series Is The Next Generation Of Enterprise-class Stackable Ethernet And Multigigabit Ethernet Access And Aggregation Layer Switches That Provide Full Convergence Between Wired And Wireless On A Single Platform. CISCO New Unified Access Data Plane (uadp) Application-specific Integrated Circuit (asic) Powers The Switch And Enables Uniform Wired-wireless Policy Enforcement, Application Visibility, Flexibility, And Application Optimization. This Convergence Is Built On The Resilience Of The New And Improved CISCO Stackwise-480 Technology. The CISCO Catalyst 3850 Series Switches Support Full Ieee 802.3at Power Over Ethernet Plus (poe+), CISCO Universal Power Over Ethernet (CISCO Upoe), Modular And Field-replaceable Network Modules, Rj45 And Fiber-based Downlink Interfaces, And Redundant Fans And Power Supplies. With Speeds That Reach 10gbps, The CISCO Catalyst 3850 Multigigabit Ethernet Switches Support Current And Next-generation Wireless Speeds And Standards (including 802.11ac Wave 2) On Existing Cabling Infrastructure.
Specifications:

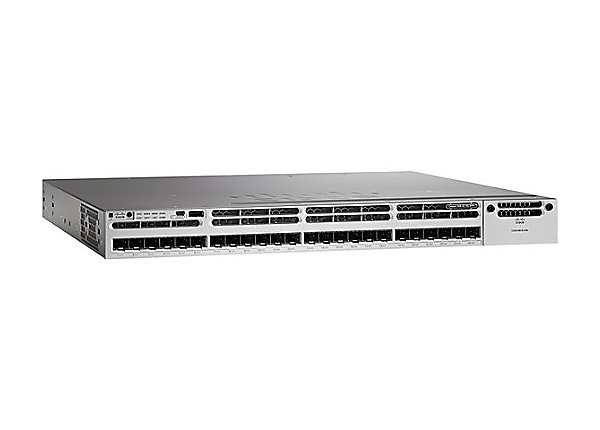

Description : CISCO – Catalyst 3850-24xs-e – Switch – 24 Ports – 1 Gigabit / 10 Gigabit Sfp+ – Managed – Desktop, Rack-mountable
Device Type : Switch – 24 Ports – L3 – Managed – Stackable
Enclosure Type: Desktop, Rack-mountable 1u
Subtype : 10 Gigabit Ethernet
Ports : 24 X 1 Gigabit / 10 Gigabit Sfp+
Interfaces : 24 X 10gbase-x Sfp+ 1 X Usb Type A 1 X Management (mini-usb) Type B 1 X Console Rj-45 Management 1 X Management (gigabit Lan) Rj-45 2 X Network Stack Device
Expansion Slots: 1 (total) / 1 (free) X Expansion Slot
Performance : Switching Capacity: 640 Gbps Stacking Bandwidth: 480 Gbps
Capacity : Ipv4 Routes: 24000 Netflow Entries: 48000 Virtual Interfaces (vlans): 4000 Switched Virtual Interfaces (svis): 1000
Routing Protocol: Ospf, Bgp-4, Is-is, Rip-1, Rip-2, Eigrp, Igmpv2, Igmp, Pim-sm, Pim-dm, Igmpv3, Eigrp For Ipv6, Ospfv3, Pim-ssm, Policy-based Routing (pbr), Ripng, Mldv2, Mld
Remote Management Protocol: Snmp 1, Rmon 1, Rmon 2, Telnet, Snmp 3, Snmp 2c, Tftp, Ssh, Cli
Power Device : Internal Power Supply
Installed Qty: 1
Max Supported Qty: 2
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with Optional Power Supply)
Power Provided: 715 Watt
Voltage Required: Ac 120/230 V (50 – 60 Hz)
Dimensions (wxdxh): 17.5 In X 17.7 In X 1.8 In
Weight : 13.45 Lbs
Condition : Refurbished.
Availability: In Stock.
Warranty : 90 Days.
