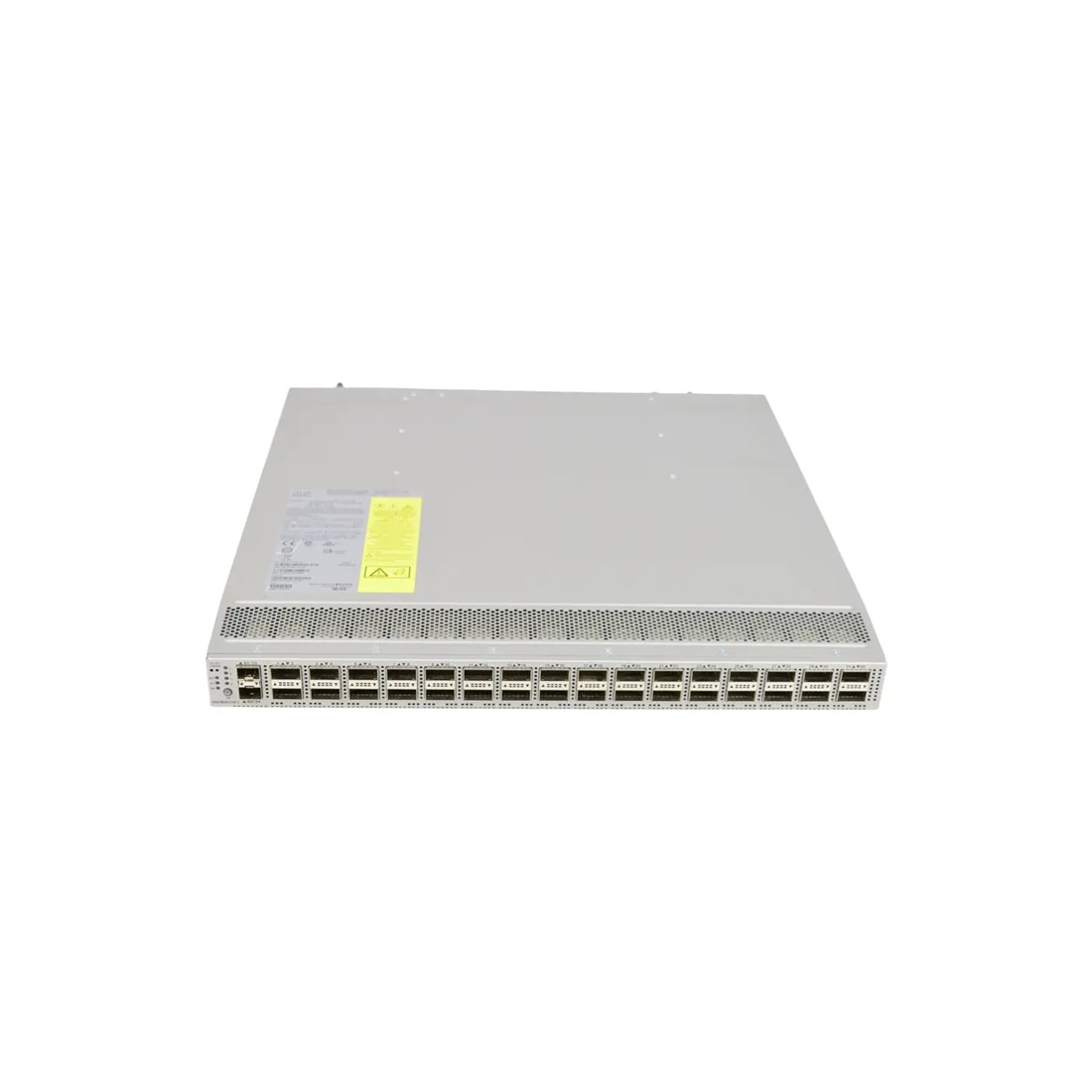

CISCO N3K-C3132C-Z Nexus 3132c-z – Switch – L3 – Managed – 32 X 100 Gigabit Qsfp28 – Rack-mountable.
General Information:
Device Type: Switch – 32 Ports – L3 – Managed
Enclosure Type: Rack-mountable 1u
Subtype: 100 Gigabit Ethernet
Ports: 32 X 100 Gigabit Qsfp28
Performance: Switching Capacity: 6.4 Tbps
Capacity:
Ipv4 Routes (unicast): 24000
Ipv4 Hosts: 168000
Ipv4 Routes (multicast): 4096
Virtual Interfaces (vlans): 4096
Acl Entries: 4096
Rstp Instances: 512
Mstp Instances: 64
Packet Buffer Size: 32 Mb
Mac Address Table Size: 288k Entries
Jumbo Frame Support: 9216 Bytes
Routing Protocol : Ospf, Bgp-4, Rip-2, Bgp, Eigrp, Igmpv2, Hsrp, Igmp, Vrrp, Ospfv2, Pim-sm, Igmpv3, Gre, Msdp, Ecmp, Mpls, Cidr, Mstp, Rstp, Stp, Ntpv3
Remote Management Protocol: Snmp 2, Snmp, Rmon, Telnet, Snmp 3, Tftp, Ssh-2, Cli, Netconf, Ntp, Icmp, Dhcp, Ipv4, Ipv6, Json, Rstp
Encryption Algorithm: Md5, Aes
Authentication Method: Radius, Tacacs+, Ms-chap, Secure Shell V.2 (ssh2)
Features : Bootp Support, Syslog Support, Spanning Tree Protocol (stp) Support, Access Control List (acl) Support, Virtual Route Forwarding-lite (vrf-lite), Uni-directional Link Detection (udld), Rapid Per-vlan Spanning Tree Plus (pvrst+), Dhcp Relay, Link Aggregation Control Protocol (lacp), Management Information Base (mib), Stp Portfast, Class Of Service (cos), Virtual Portchannel (vpc) Technology, Virtual Private Lan Service (vpls), Control Plane Protection (copp), Virtual Extensible Lan (vxlan), Role-based Access Control (rbac), Source-specific Multicast (ssm), CISCO Discovery Protocol, Spanning-tree Root Guard (strg), Authentication, Authorization And Accounting (aaa), Dns Client, Power On Auto Provisioning (poap), Top-of-rack (tor), Proxy Arp, Switched Port Analyzer (span), Encapsulated Remote Span (erspan), Embedded Event Manager (eem), Vlan Tagging, Q-in-q Tunneling, Online Health Management System (ohms), Beacon Led
Compliant Standards: Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3ba, Ieee 802.1ax
Ram: 16 Gb
Built-in Devices: 128 Gb Flash
Status Indicators: Status, Environment
Expansion / Connectivity:
Interfaces:
32 X 100gbase-x Qsfp28
2 X 10gbase-x Sfp
1 X Console Rj-45
1 X Management Rj-45/sfp
1 X Usb
Power:
Power Device: Internal Power Supply (not Installed) – Hot-plug
Max Supported Qty: 2
Power Redundancy: Optional
Condition: Refurbished.
Availability: In Stock.
Warranty: 90 Days.
