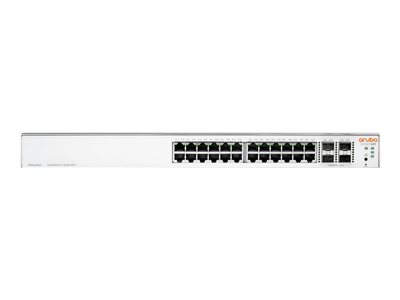

HPE JL682A Aruba Instant On 1930 24g 4sfp/sfp+ Switch – Switch – 28 Ports – Managed – Rack-mountable.
Key Features :
Device Type : Switch – 28 Ports – L3 – Managed
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 + 4 X 1 Gigabit / 10 Gigabit Sfp+
Performance : Switching Capacity: 128 Gbps ¦ Throughput: 95.23 Mpps ¦ Latency (1 Gbps): 2.4 Μs ¦ Latency (10 Gbps): 1.3 Μs
Capacity : Link Aggregation Ports: 8 | Ipv4 Routes (static): 32 | Vlans Supported: 256 | Access Control Entries (aces) Per Acl: 480 | Packet Buffer Size: 1.5 Mb
Mac Address Table Size : 16000 Entries
Jumbo Frame Support : 9216 Bytes
Routing Protocol : Static Ip Routing
Remote Management Protocol : Snmp 1, Rmon, Snmp 3, Snmp 2c, Http, Https, Tftp, Radius
Encryption Algorithm : Ssl
Authentication Method : Radius
Features : Flow Control, Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Trusted Platform Module (tpm), Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Class Of Service (cos), Bpdu Filter
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az
Processor : 1 X Arm Cortex-a9: 800 Mhz
Ram : 512 Mb Sdram
Flash Memory : 256 Mb
Status Indicators : Port Status, Power
Expansion / Connectivity :
Interfaces :
24 X 10/100/1000 Base-t Rj-45
4 X 1/10gbit Lan Sfp+
Power :
Power Device : Internal Power Supply
Voltage Required : Ac 120/230 V (50/60 Hz)
Power Consumption Operational : 22.6 Watt
Condition : New Open Box.
Availability : In Stock.
Manufacturer Warranty : Full
Our Warranty : 90 Days
